Precision-stamped Pipeline Fixing Parts｜Strut Clamp

Industrial pipe assembly requires high precision, structural consistency and perfect fitting performance for pipe clips. Traditional processed pipe fittings often suffer from radian deviation, inaccurate clamping position and poor batch interchangeability. As a standardized stamping pipe clip, the stamped P-type strut clamp adopts one-piece stamping and bending technology, featuring stable tolerance, unified structure and excellent interchangeability, which perfectly meets high-standard modular pipe installation requirements.

Product Process & Structure

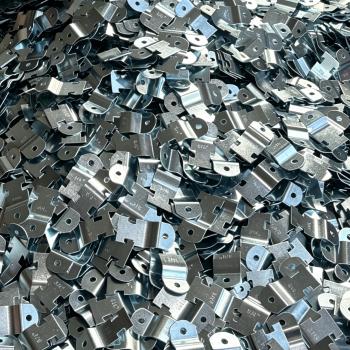

P-type strut clamps are manufactured from high-quality carbon steel and stainless steel sheets through integrated precision stamping and bending. With no welding joints or splicing gaps, the overall structural strength is greatly improved. Every dimension including radian, opening size, clamping position and sheet thickness is strictly controlled by custom molds. After deburring, leveling and anti-rust treatment, the products are smooth, burr-free and ready for heavy-duty and standard pipe fixing scenarios.

Core Stamping & Assembly Advantages

1.Integrated stamping for stable structural strength

One-piece forming eliminates weak welding points, ensuring uniform force bearing and strong deformation resistance, ideal for long-termheavy-duty pipe fixing.

2.High-precision batch consistency

Custom precision molds guarantee tiny tolerance deviation and excellent batch interchangeability, supporting large-scale modular construction and seamless part replacement.

3.Complete anti-corrosion surface treatment

Available with electro-galvanized, hot-dip galvanized and passivated finishes to protect stamping cutting edges from oxidation, improving durability in humid, outdoor and corrosive environments.

4.High compatibility for fast on-site assembly

Standard snap-in structure fits common strut channel profiles perfectly. No grinding or trimming is needed, greatly improving on-site installation efficiency for modular engineering projects.

Application Scope

• Fire-fighting: sprinkler and fire water pipe fixing.
• HVAC: refrigerant, water and auxiliary duct line fixing.
• MEP installation: cable tray, conduit and harness fixing.
• PV / new energy: support frame, inverter and cable conduit fixing.
• Building water supply & drainage: indoor and rainwater pipe fixing.
• Industrial plants / overseas infrastructure: steel-structure plants, warehousing and comprehensive pipeline fixing.

Key Assembly Guidelines

1. High-precision Fitting: Benefiting from integrated precision stamping design, the clamps require no manual trimming or grinding during installation. They can snap into strut channels accurately, eliminating manual assembly errors and adapting to standardized modular construction.

2. Batch Compatibility: Stamped clamps from the same batch feature unified radian, size and clamping position, supporting random replacement in large-scale modular pipe projects without repeated debugging, greatly improving overall construction efficiency.

3. Deformation Prevention: The one-piece stamping structure has no weak welding points. Avoid over-tightening bolts during assembly to prevent radian deformation and structural precision damage, maintaining original load-bearing performance.

4. Surface Protection: The uniform anti-corrosion coating effectively prevents oxidation and rusting. Avoid hard object scratching during installation to retain complete surface protection for long-term service in complex outdoor and humid environments.

5. Customized Assembly: For non-standard stamped clamps customized for special pipe diameters and plate thicknesses, match pipelines and strut channels strictly according to custom parameters to ensure perfect fitting and meet high-precision, heavy-duty assembly requirements of special working conditions.
