How to Choose the Right Specifications for U-Bolts

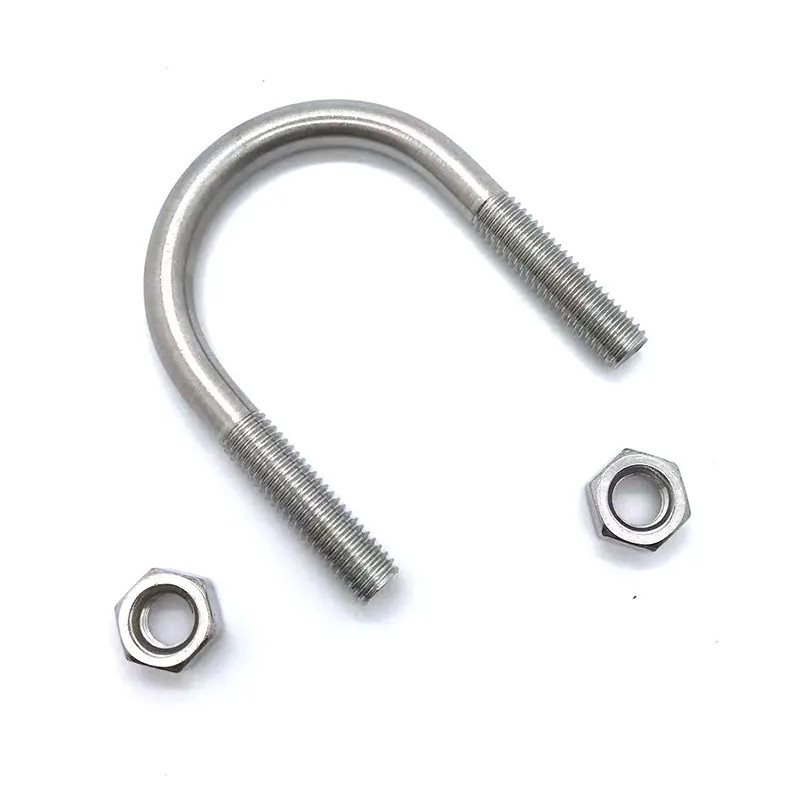

U-bolts are among the most widely used fasteners in pipe fastening, equipment bracing, and steel structure installation projects. With their simple design and high adaptability, they are commonly used in plumbing, fire protection piping, gas pipelines, and the mounting of electromechanical equipment. During actual construction and procurement, many people often encounter issues such as failure to install, insufficient clamping force, rusting, inadequate load-bearing capacity, and loosening or detachment over time due to incorrect specification selection. So, how exactly should you select the specifications for U-bolts?

Standard Notation Format for U-Bolts

General Notation: U-bolt  Pipe Diameter × Shank Diameter × Total Length

For example: U27 M8×100

27: Compatible with steel pipe outer diameter of 27 mm

M8: Threaded shank diameter of 8 mm

100: Total internal length of the U-shaped base (excluding the nut)

All selection parameters are based primarily on the pipe’s outer diameter, the shank’s strength, and the available installation space—not the pipe’s inner diameter. This is the most fundamental principle of selection.

(I) Compatible Pipe Outer Diameter

The inner width of the U-bolt must match the pipe’s outer diameter. This is critical to successful selection and the most common source of error; under no circumstances should selection be based on the pipe’s inner diameter. To accommodate standard engineering pipe sizes, the industry has established a standardized system of U-bolt specifications that are compatible with the vast majority of galvanized, welded, and seamless steel pipes. The specific correspondences are shown in the table below:

For non-standard pipes such as PVC, PE plastic pipes, and stainless steel round pipes, there is no need to refer to pipe diameter models; simply measure the actual outer diameter of the pipe to select the corresponding U-shaped screw. At the same time, special attention must be paid to the selection margin for insulated pipes: if the pipe is wrapped in an insulation layer and a protective layer, the combined thickness of the insulation layer on both sides must be added to the pipe’s outer diameter before selecting the specification; otherwise, the clamps may be too small to securely fasten the pipe.

(II) Screw Thread Sizes

Common thread sizes for U-bolts are M6, M8, M10, M12, and M16. Different sizes correspond to different maximum load capacities and applications. The appropriate size must be selected based on the weight of the object to be secured and the load conditions to avoid safety hazards caused by insufficient load-bearing capacity.

(III) Total Length of the Screw

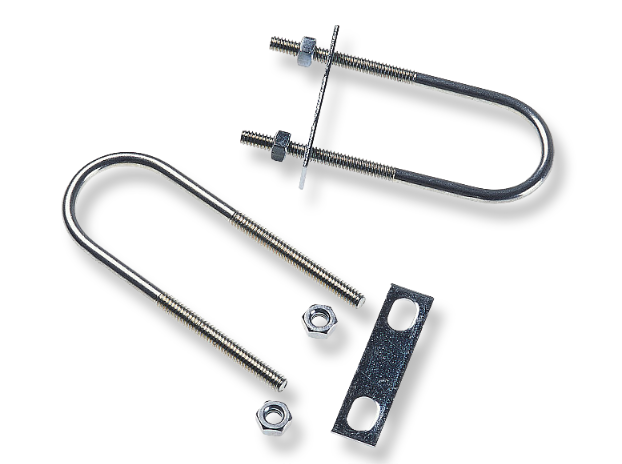

The total length of a U-bolt directly determines the thickness of the support plate it can accommodate and the required installation clearance. Improper selection of the length can result in problems such as insufficient threads for the nut to engage, failure to secure the fastener, or excessive protrusion of the screw. The formula for calculating the appropriate total length is: Total Length = Pipe Outer Diameter + Support Plate Thickness + Installation Clearance on Both Sides. In standard construction practices, a 20–30 mm assembly allowance is reserved on each side to accommodate washers, spring washers, and nuts, ensuring a secure fastening.

Specifications for Selecting Strength Grades

The strength grade of U-bolts must be appropriately matched to the vibration intensity and load-bearing requirements of the operating conditions. For standard plumbing and heating lines, as well as static pipe fastenings without frequent vibration, conventional Grade 4.8 galvanized U-bolts are sufficient to meet operational requirements; In dynamic load scenarios—such as equipment support brackets, vibrating pipes, and high-altitude pipe fastenings—higher requirements for bolt strength and fatigue resistance apply. Grade 8.8 high-strength bolts must be used to effectively mitigate the risks of thread stripping and fracture caused by long-term vibration; Stainless steel U-bolts adhere to industry standard grades: 304 grade corresponds to A2-70, and 316 grade corresponds to A4-70, making them suitable for various corrosion-resistant, high-strength applications.

Summary

1. Measure the actual outer diameter of the pipe; if there is insulation, add the insulation thickness to select the corresponding U-bolt inner diameter;

2. Determine the thread size based on the pipeline’s application and load capacity: select M8 for light loads, M10 for standard loads, and M12 or larger for heavy loads;

3. Measure the thickness of the steel plate for the fixed support and, taking into account the standard assembly allowance, calculate the total length of the matching studs;

4. Determine the material and surface treatment based on the operating environment, distinguishing between indoor, outdoor, corrosive, and high-temperature conditions;

5. Select flat washers, spring washers, and nuts made of the same material to avoid electrochemical corrosion caused by contact between different materials and to extend service life.
