Structure, Process & WorkingCondition Advantages of Metal-EPDM Bonded Washers

For outdoor fastening applications including metal roof and solar projects, sealing failure is one of the most common failure causes.Many customers initially select ordinary separate rubber gaskets and flat washers. Under complex outdoor working conditions such as salt spray corrosion, strong UV radiation, alternating high low temperature, ordinary rubber gaskets will crack, harden and leak after short term service.

Adopting high-precision rubber-plastic integrated stamping molding technology, this product features a solid structure made of pure EPDM (Ethylene Propylene Diene Monomer) rubber with no metal interlayer and no composite delamination. It boasts a regular appearance, dense cut surface and accurate aperture, eliminating technical defects such as edge burrs and uneven thickness.Supported by precision die-cutting and stamping molding technology, the washer achieves extremely small dimensional tolerance, perfectly fitting the assembly clearances of various equipment. Featuring excellent native waterproof, insulating and anti-aging properties, the original EPDM material delivers long-term anti-corrosion and weather resistance without additional surface treatment, making it ideal for high-intensity outdoor working scenarios.

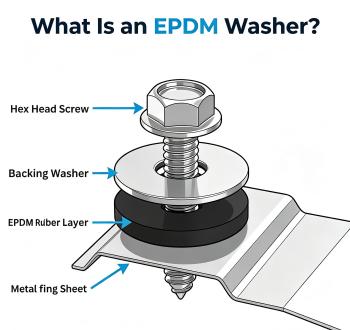

一、Product Structure, Raw Material & Surface Process

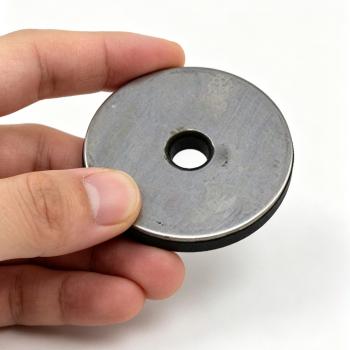

1.Precision‑Stamped Metal Carrier

Galvanized steel, stainless steel, aluminum or copper sheet is processed by high‑precision stamping to form flat ring‑shaped substrate. Metal thickness:0.5‑1.2 mm. Stamped substrate forms rigid skeleton of washer, bears full tightening force of fasteners and protects rubber layer from crush damage. Surface inherits original anti‑corrosion performance of sheet, secondary surface treatment is unnecessary for most scenarios. Stamping guarantees flatness for stable mass production.

2.Vulcanized EPDM Sealing Rubber Layer

Rubber options: EPDM, thermoset EPDM, conductive EPDM, neoprene. Rubber thickness:1.5‑5 mm with multi‑color selections. Rubber undertakes full sealing functions: block moisture invasion, resist UV & ozone damage, withstand wide‑range thermal shock.

3.Vulcanized Bonding Interface

High‑temperature vulcanization creates chemical bonding between rubber and stamped metal substrate, different from simple glue sticking. No bubbling, delamination or peeling under continuous vibration and thermal cycles caused by day‑night temperature difference, guarantee long‑term sealing reliability.

二、Stock & Custom Stamping‑Composite Specifications

★ Black star: Standard stamping composite parts in stock；● Red Spots: Special tailor‑made non‑standard stamping‑vulcanized products.

三、Condition Value

Metal roof enclosure and solar mounting systems are core application scenarios. Pure rubber gaskets are easily crushed while tightening self-drilling screws; offset loose gaskets leave invisible leakage risks.

Stamped Metal-EPDM bonded washers: stamped substrate undertakes mechanical compression load, vulcanized EPDM rubber delivers stable weather-proof sealing. Standard stamping composite parts support mass bulk delivery. Custom development for non-standard dimension and special rubber formula is available according to customer drawings or samples to satisfy special project technical requirements.

Please contact our technical department for stamping-composite samples, performance test reports and customized sealing solutions for construction & new-energy industries.
